Symbol
Usage & working

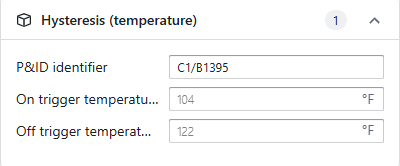

The hysteresis block (temperature) works as a standard hysteresis but allows to easily enter the on/off trigger points in different temperature units. The block sends out a high (or “1”) signal when the input temperature goes below the “on trigger value”. The block sends out a low signal when the input goes above the “off trigger value”.
The input temperature is expected to be provided °C. For more information on how to correctly work with units in Hysopt’s control logic, please consult Unit conversions in Hysopt .
