Symbol
Usage & working
The comparison creates a high (“1') signal if input A is larger than input B.
The comparison creates a low (“0”) signal if input A is smaller than input B.
Example

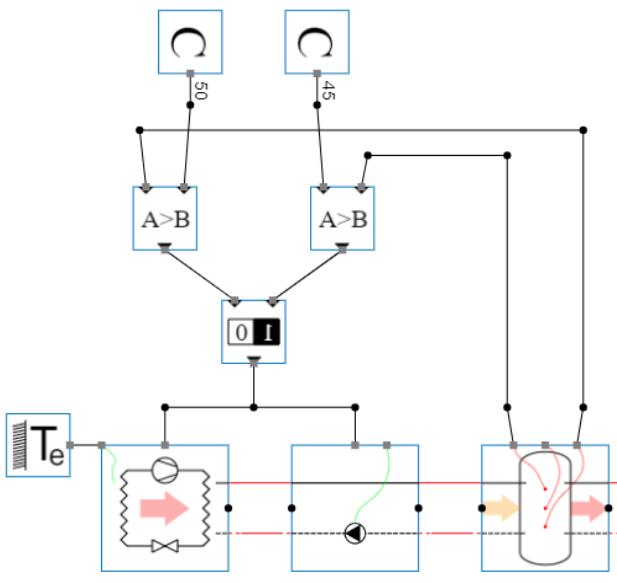

In the example also used for the activator , the sensor from a buffer vessel is compared to a setpoint temperature to (de)activate the heat pump.
