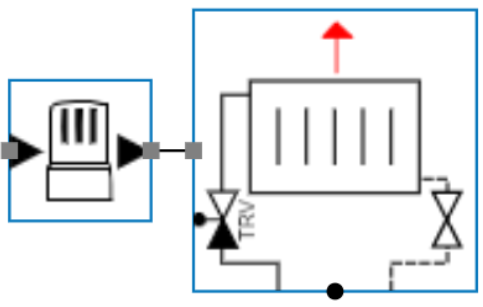

Symbol and connections
The thermostatic controller is meant for a single specific Base circuit “Radiator with thermostatic Radiator valve”.
The radiator valve control mimics the same working principle from a thermostatic radiator valve, where a setpoint needs to be defined (as per the setpoint generator ). The input can be connected to a specific zone.
