Hybrid production Cooling

In the Hysopt software, it is possible to connect multiple productions in different ways. As in the heating library, there are both parallel and serial solutions.

The operation of these hybrid cooling productions is the same as this in the library of heating ( Hybrid production Heating ). Only pay attention to the temperatures you fill in.

Parallel

  • Parallel production


  • Switched production


Serial

  • Serial production

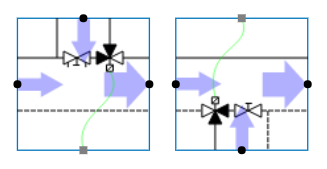

  • Switched serial production on supply/return pipe


Shunt

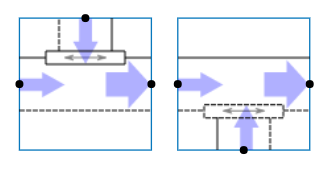

  • Drag flow power node on supply/return pipe

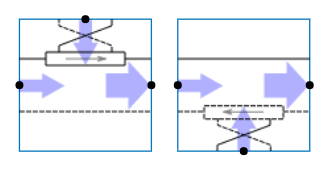

  • Reverse drag flow power node on supply/return pipe
