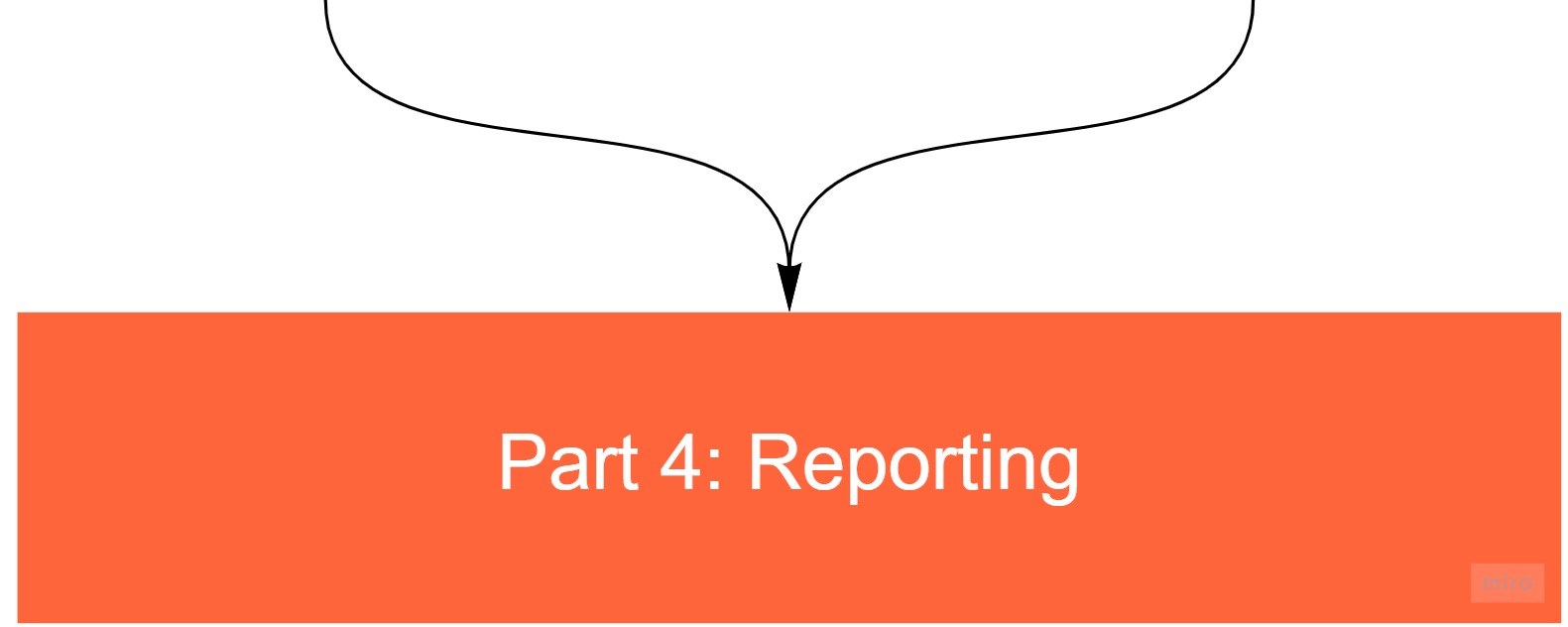

Step 4: Reporting (component selections etc.)

When your model is done and calculated, you can do a couple of different exports .

The most used by the delivery team is the component list.

Template_Component Selec…

From left to right you can see different components, for which you can fill in the necessary information, depending on the exact scope of your project.

1. Pumps

   1. The pump head and design flow with possible selection

2. Balancing valve

   1. With selected KV-value and calculated valve setting based on this KV-value

3. Primary 3-way control valve or 2-way valve

   1. KVS-value with Authority

4. On/off valve

   1. KVS-value

5. DPCV

   1. Pressure target

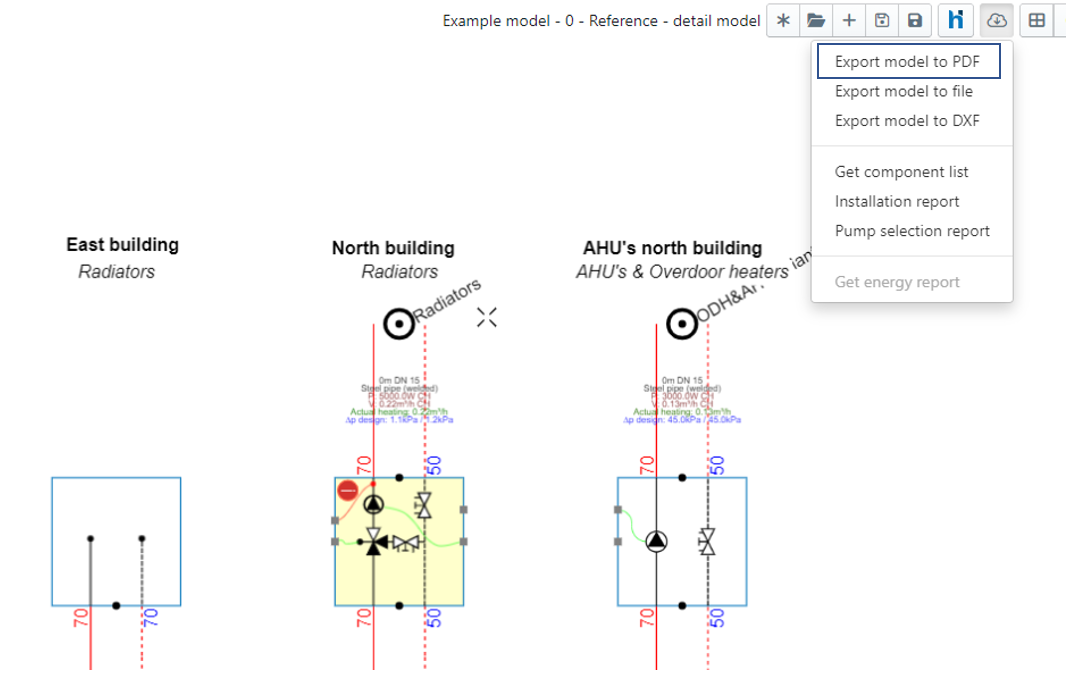

Finally, you can add an export of the model to this, by clicking “export model to PDF”
